srWGS分析¶
硬盘挂载¶

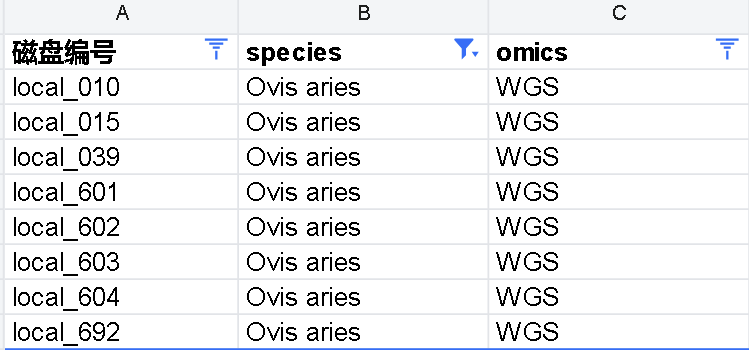

可以磁盘信息表确定所需硬盘,将相关硬盘按照xxxx规范挂载到存储节点。
申请样本¶
这一步获取需要分析的样本软链接，详情见样本申请 以 Ovis aries为例，save_path中产生了3625个样本
{
"save_path": "/data01/idata/tmp/apply_sample/xzhang/Ovis_aries",
"need_runs": [],
"species": "Ovis aries",
"tissue": [
"all"
],
"omics": "WGS",
"depth": 5,
"reads": 6000000,
"custom_gs": 0,
"sample_count": 0,
"show_details": true,
"worker": "storage_cu01_main"
}
Note
受当前存储方案限制，数据主要通过cu01或者cu06挂载到服务器，尽管在其他节点能够看到软链接，实际上只有在对应的挂载节点才能访问数据！
拷贝数据¶
除非数据就在挂载节点分析，否则就需要在挂载节点拷贝数据，让各节点拥有数据访问权。大多数情况我们会将数据拷贝到多瑙平台 进行分析，为了降低存储成本(100TB数据大概40元)，建议分批次传输数据进行分析(数据传输--数据分析--分析结果返回--数据删除，批次颗粒度越低，存储成本越低)。
##cu01 将上述样本mv 500到该目录batch1
screen -S cp_cu01_duonao_xzhang
scp -P 18081 -r /data01/idata/tmp/apply_sample/xzhang/Ovis_aries/batch1 lxl@211.69.141.180:/share/home/lxl/08Users/yhfu/04Projects/006_idata_sheep/data/
多瑙平台的入口带宽为万兆(或者更高？)，所有除了从cu01拷贝数据，也可以通过cu06拷贝数据(二者使用的不同的网络)，这个时候需要通过隧道将数据通过cu01→cu06→多瑙平台进行传输，具体参考SSH隧道
#构建隧道(注意端口占用)
screen -S ssh_tunnel_for_cu06_xzhang
ssh -L 12366:211.69.141.180:18081 idata@cu06
#传输数据 batch2
screen -S cp_cu01_cu06_duonao_xzhang
scp -P 12366 -r /data01/idata/tmp/apply_sample/xzhang/Ovis_aries/batch2 lxl@localhost:/share/home/lxl/08Users/yhfu/04Projects/006_idata_sheep/data/
数据分析¶
环境检查¶
#检查sentieon证书
sentieon licclnt ping -s cli-ARM-01:9001
#检查API接口 (cli-ARM-01 已提前加入 allowhost)
curl cli-ARM-01:8001
配置srWGS.yaml¶
#需要导入的模块
required_rules:
- QC_fastp
- mapping_DNAseq
- calling_DNAseq
# - joint_GVCFtyper
# - VariantFiltration_gatk_SNP
# - VariantFiltration_gatk_INDEL
# - VariantFiltration_bcftools_SNP
# - VariantFiltration_bcftools_INDEL
#通配符配置(用于自动解析output,注意变量名称务必为通配符+s) ？这是注意是什么意思
wildcards:
samples: /share/home/lxl/08Users/yhfu/04Projects/004_idata_mmu/data/*
# samples: ./test/samples/*
#共用配置
global_params:
description: "cfa_yhfu_20250104" #当前分析任务的备注 最好是物种缩写_用户名_日期
# work_dir: ./test
work_dir: /share/home/lxl/08Users/yhfu/04Projects/004_idata_mmu/analysis/work
script_path: auto # auto为自动推断
data_dir: /share/home/lxl/08Users/yhfu/04Projects/004_idata_mmu/data
#基因组相关配置
genomelable: "GRCm39_ensembl"
index: /share/home/lxl/08Users/yhfu/04Projects/004_idata_mmu/GRCm39_ensembl/bwa_index/GRCm39_ensembl_bwa
genome: /share/home/lxl/08Users/yhfu/04Projects/004_idata_mmu/GRCm39_ensembl/genome/Mus_musculus.GRCm39.dna_sm.toplevel.fa
genome_dict: /share/home/lxl/08Users/yhfu/04Projects/004_idata_mmu/GRCm39_ensembl/genome/Mus_musculus.GRCm39.dna_sm.toplevel.fa.dict
genome_size: 2728222451
threads: 32
#rules特有的配置
rules:
QC_fastp:
input:
sample:
value: f"{data_dir}/{{sample}}"
args: -r
output:
cleaned_gz:
value: directory(f"{work_dir}/results/QC/{{sample}}")
ignore: True
resources:
mem_mb:
value: threads*4096
params:
outdir:
value: f"{work_dir}/results"
args: -o #缺省或者为null代表无标识符,如果不需要该参数，请用ignore
threads:
value: 8 if threads >8 else threads
args: -t
fast:
value: f""
args: -f
ignore: True
upload:
value: f""
args: -u
threads:
value: 8 if threads >8 else threads
shell: #该设计无法推断多条命令，需要自定义
cmd_template: python3 {script_path}/common/QC_fastp.py
cmd_args: auto #自动推断参数,并添加到cmd_template后面;如果不为auto,则会忽略cmd_template，直接使用cmd_args(即这里手动写完整的命令行参数)
#"python3 {script_path}/srWGS/mapping_DNAseq.py -r {input.sample} -i {input.index} -g {params.genome} -t {threads} -o {params.outdir}"
chain:
next: mapping_DNAseq
mapping_DNAseq:
input:
sample:
value: f"{work_dir}/results/QC/{{sample}}"
args: -r
output:
bam:
value: directory(f"{work_dir}/results/mapping/{{sample}}")
ignore: True
resources:
mem_mb:
value: threads*4096
params:
outdir:
value: f"{work_dir}/results"
args: -o #缺省或者为null代表无标识符,如果不需要该参数，请用ignore
index:
value: index
args: -i
genome:
value: genome
args: -g
genome_size:
value: genome_size
args: -s
genomelable:
value: genomelable
args: -l
threads:
value: threads
args: -t
upload:
value: f""
args: -u
threads:
value: threads
shell: #该设计无法推断多条命令，需要自定义
cmd_template: python3 {script_path}/srWGS/mapping_DNAseq.py
cmd_args: auto #自动推断参数并添加到cmd_template后面，如果不为auto则会忽略cmd_template，直接使用cmd_args
#"python3 {script_path}/srWGS/mapping_DNAseq.py -r {input.sample} -i {input.index} -g {params.genome} -t {threads} -o {params.outdir}"
chain:
next: calling_DNAseq
calling_DNAseq:
input:
bam:
value: f"{work_dir}/results/mapping/{{sample}}"
args: -b
output:
gvcf:
value: directory(f"{work_dir}/results/calling/{{sample}}")
ignore: True
resources:
mem_mb:
value: threads*4096
params:
outdir:
value: f"{work_dir}/results"
args: -o #缺省或者为null代表无标识符,如果不需要该参数，请用ignore
index:
value: index
args: -i
genome:
value: genome
args: -g
genomelable:
value: genomelable
args: -l
threads:
value: threads
args: -t
upload:
value: f""
args: -u
threads:
value: threads
shell: #该设计无法推断多条命令，需要自定义
cmd_template: python3 {script_path}/srWGS/calling_DNAseq.py
cmd_args: auto #自动推断参数并添加到cmd_template后面，如果不为auto则会忽略cmd_template，直接使用cmd_args
#"python3 {script_path}/srWGS/mapping_DNAseq.py -r {input.sample} -i {input.index} -g {params.genome} -t {threads} -o {params.outdir}"
chain:
next: joint_GVCFtyper
joint_GVCFtyper:
input:
gvcf:
value: expand(f"{work_dir}/results/calling/{{sample}}", sample=SAMPLES)
args: -i
output:
vcf:
value: f"{work_dir}/results/joint/joint.raw.vcf.gz"
ignore: True
resources:
mem_mb:
value: threads*4096
params:
outdir:
value: f"{work_dir}/results"
args: -o #缺省或者为null代表无标识符,如果不需要该参数，请用ignore
genome:
value: genome
args: -g
genomelable:
value: genomelable
args: -l
threads:
value: threads
args: -t
upload:
value: f""
args: -u
threads:
value: threads
shell: #该设计无法推断多条命令，需要自定义
cmd_template: python3 {script_path}/srWGS/joint_GVCFtyper.py
cmd_args: auto #自动推断参数并添加到cmd_template后面，如果不为auto则会忽略cmd_template，直接使用cmd_args
#"python3 {script_path}/srWGS/mapping_DNAseq.py -r {input.sample} -i {input.index} -g {params.genome} -t {threads} -o {params.outdir}"
chain:
next: VariantFiltration_gatk_SNP,VariantFiltration_gatk_INDEL
VariantFiltration_gatk_SNP:
input:
gvcf:
value: f"{work_dir}/results/joint/joint.raw.vcf.gz"
args: -i
output:
vcf:
value: f"{work_dir}/results/filtration/SNP/snp.filter.vcf"
ignore: True
resources:
mem_mb:
value: threads*4096
params:
outdir:
value: f"{work_dir}/results"
args: -o #缺省或者为null代表无标识符,如果不需要该参数，请用ignore
variant_type:
value: f"SNP"
args: -s
genome:
value: genome
args: -g
threads:
value: "1" #改配置文件禁止使用数字，在生成smk时会自动格式化为数值
args: -t
threads:
value: "1"
shell: #该设计无法推断多条命令，需要自定义
cmd_template: python3 {script_path}/srWGS/VariantFiltration_gatk.py
cmd_args: auto #自动推断参数并添加到cmd_template后面，如果不为auto则会忽略cmd_template，直接使用cmd_args
#"python3 {script_path}/srWGS/mapping_DNAseq.py -r {input.sample} -i {input.index} -g {params.genome} -t {threads} -o {params.outdir}"
chain:
next: None
VariantFiltration_gatk_INDEL:
input:
gvcf:
value: f"{work_dir}/results/joint/joint.raw.vcf.gz"
args: -i
output:
vcf:
value: f"{work_dir}/results/filtration/INDEL/indel.filter.vcf"
ignore: True
resources:
mem_mb:
value: threads*4096
params:
outdir:
value: f"{work_dir}/results"
args: -o #缺省或者为null代表无标识符,如果不需要该参数，请用ignore
variant_type:
value: f"INDEL"
args: -s
genome:
value: genome
args: -g
threads:
value: "1"
args: -t
threads:
value: "1"
shell: #该设计无法推断多条命令，需要自定义
cmd_template: python3 {script_path}/srWGS/VariantFiltration_gatk.py
cmd_args: auto #自动推断参数并添加到cmd_template后面，如果不为auto则会忽略cmd_template，直接使用cmd_args
#"python3 {script_path}/srWGS/mapping_DNAseq.py -r {input.sample} -i {input.index} -g {params.genome} -t {threads} -o {params.outdir}"
chain:
next: None
提交任务¶
conda activate snakemake
cd /share/home/lxl/08Users/yhfu/04Projects/004_idata_mmu/analysis
python3 /share/home/lxl/08Users/yhfu/07Test/IAnimal_Pipeline/pipeline_builder.py -c srWGS.yaml
#创建screen
screen -S srWGS_mmu_yhfu
cd ./work
conda activate snakemake
snakemake \
--executor cluster-generic \
--cluster-generic-submit-cmd "dsub -n {rule} -q default -R 'cpu={threads};mem={resources.mem_mb}' -o jobname_%J.out"\
--keep-going --jobs 30
